3-in-1 RJ45 Network / RJ11 and USB Cable Tester Review



Usage and Testing Continued

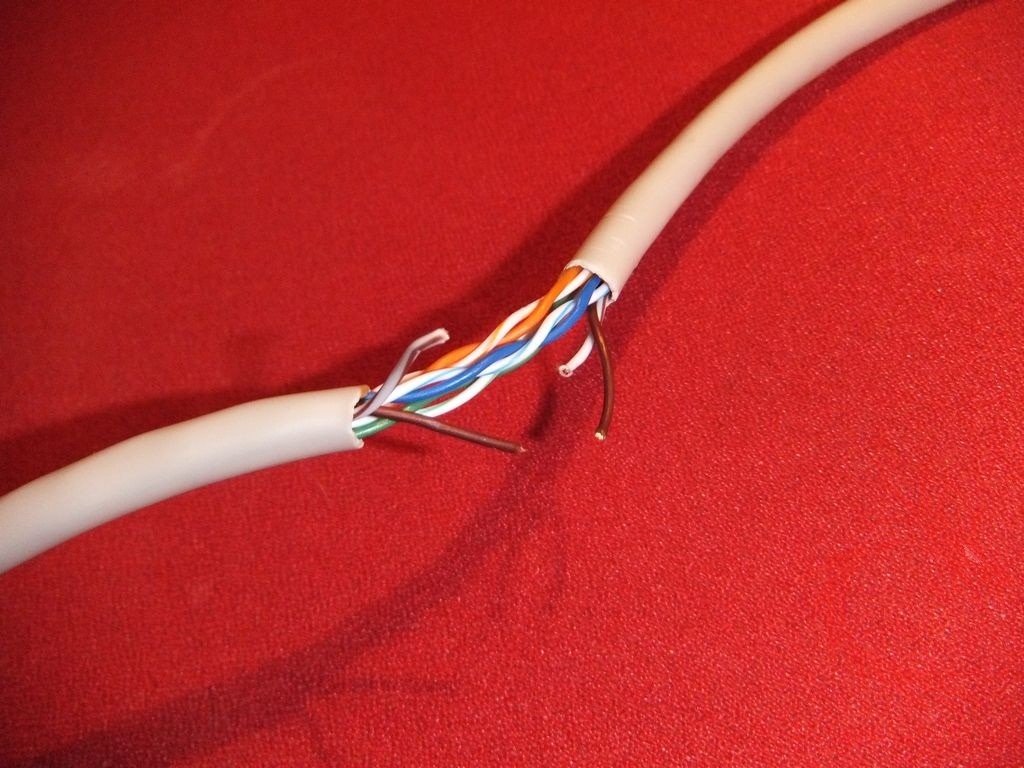

Then I had some fun as I stripped open the covering on an Ethernet cable and cut one of the wires to help show what a fault or bad wire would look like.

uetester32 uetester33



As expected it showed a broken connection on the tester.

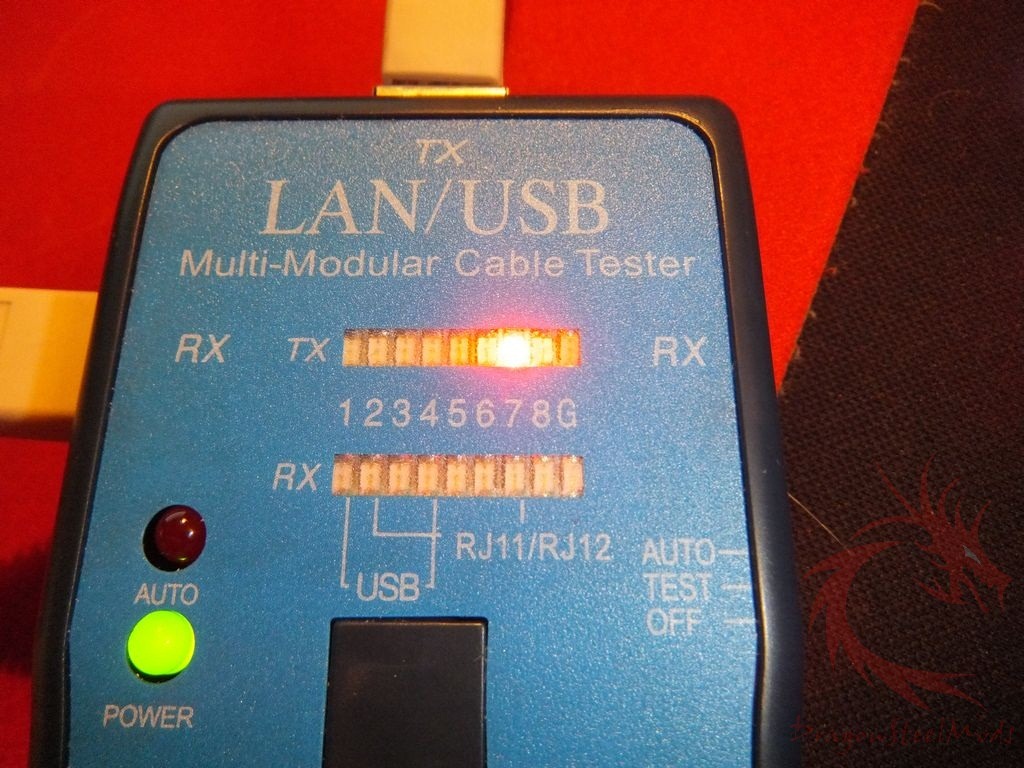

uetester34

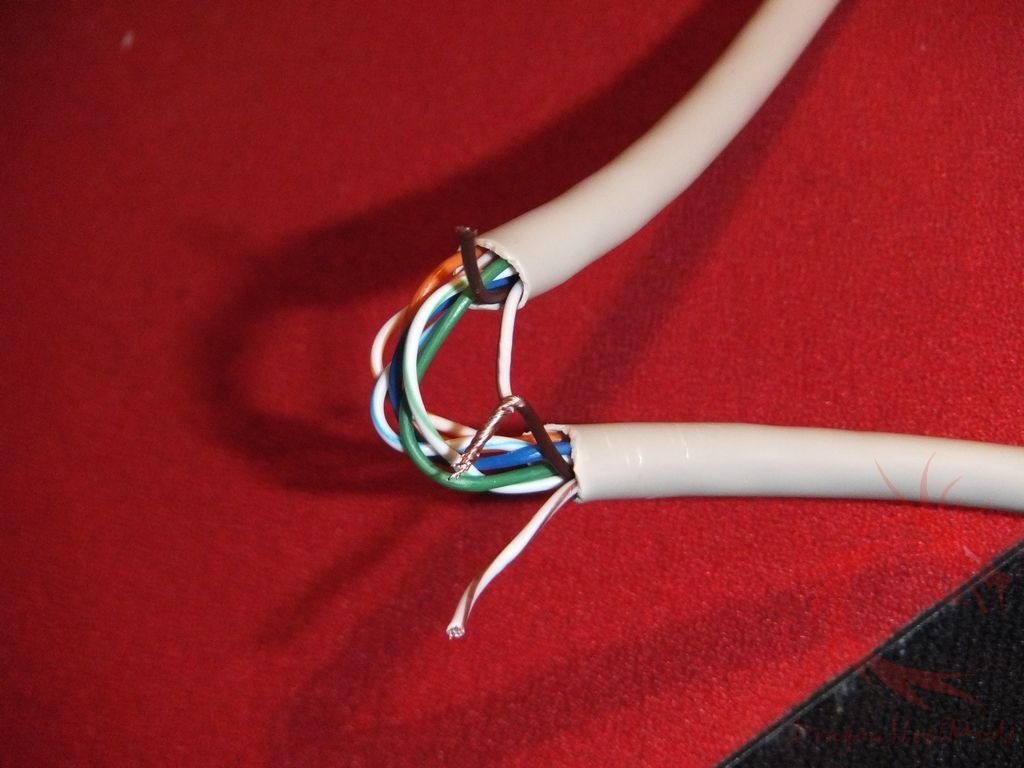

Then I went farther and cut another wires and crossed them:

uetester35 uetester36



Here we see what it look like when the 7th and 8th wires are crossed:

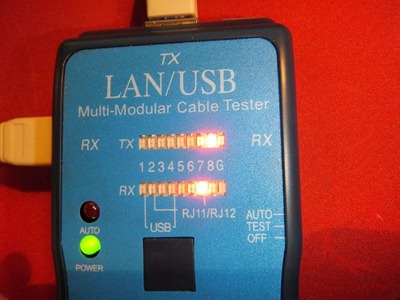

uetester37



To get a better look I snipped another wire and crossed them

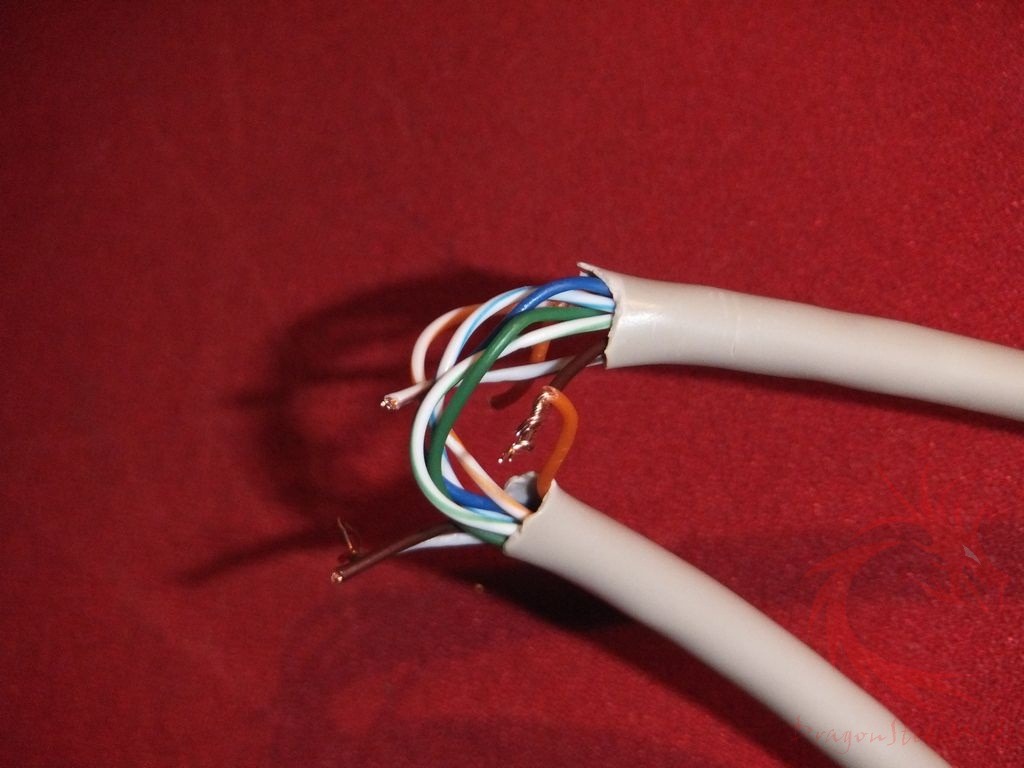

uetester38



And then you can see that wires 2 and 8 are now crossed.

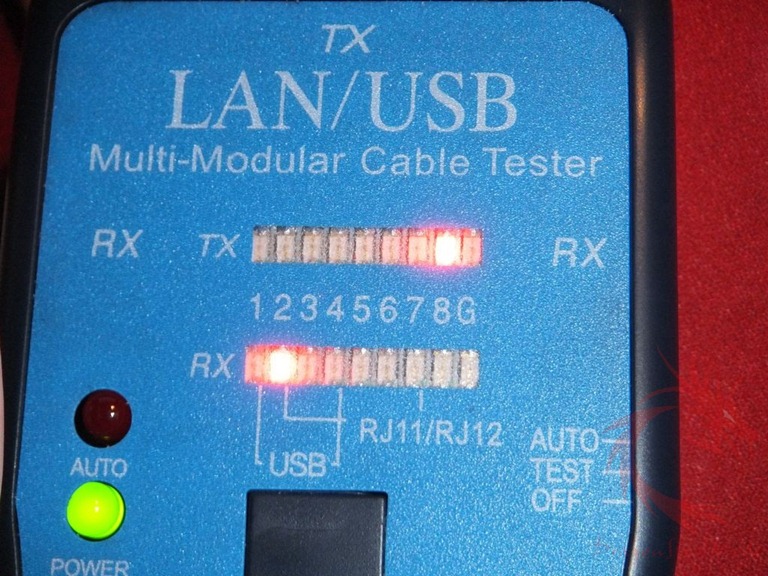

uetester39



So it works as it should thankfully!
