Hey, I’m back with another power supply review and it’s
another from Sparkle. Yesterday I took a look at the Gold Class Series 750 Watt
version and today I have the 850 Watt one. Not much else to say really so let’s
just get into it…
Product Name: Sparkle
Gold Class Series 80 Plus ATX 850 Watt Power Supply
Author: Kristofer Brozio
Sponsor: Sparkle
Tech Specs,Features or the Basic Info:
SPARKLE
SCC-850AF GOLD CLASS SERIES 80PLUS 850W ATX POWER SUPPLY
-850W Modular Power
Supply
-80 Plus Gold
Certified
-Double Ball
Bearing Fan
-All connector AU
coating to keep Ultra high efficiency
-Full Thermal
Control with super silent fan
-12V peak at 80A
-Temperature
control design mode
-Active PFC design
-Keep PSU fan
running for 5-10 seconds after shut down to dissipate the remaining system heat
and prolonging system lifetime.
-Ultra-quiet 13.9cm
Fan with intelligent RPM control guarantees cool performance and silent
operation.
-99.9% 12V Power
-SYNC Transformer
Array
-Double main
electrolytic capacitors
-DC to DC circuitry
design with solid capacitors
-Forward Safe Guard
Circuitry Design
-Dual Layer main
PCB 1.6mm thickness
-Quintuple 12V
Rails
-100A Mosfet 12V
Rectifiers
-20k µF low ESR
secondary 105? electrolytic capacitors
-Triple AC EMC
Filtering stage
-Dual capacitors
design to protect system safety when sudden shut down
UPC No.:
843636004048
Series: Gold Class
Series
Intel
Specification: ATX12V / EPS12V
Energy Efficiency:
80Plus Gold
Modular Cabling:
Yes
Fan: 139mm Fan
Fan Type: Double
Ball Bearing
+12V Rail: 5
AC Input Range:
Full Range: 100~240Vac
Frequency: 50/60Hz
Input Current:
10-6A
+5V: 30A
+3.3V: 24A
+12V1: 16A
+12V2: 16A
+12V3: 16A
+12V4: 18A
+12V5: 18A
-12V: 0.5A
+5VSB: 3A
Total Power: 850
24P Mainboard
Connector X 1
4+4P CPU +12V
Connector X 1
6+2P PCI-E
Connector X 4
SATA Connector X 9
4P Molex Connector
X 9
4P FDD Connector X
3
Dimension: 175mm X
150mm X 86mm
Price: $159.99
(price form NewEgg at time of year)
A Better Look at Things
:

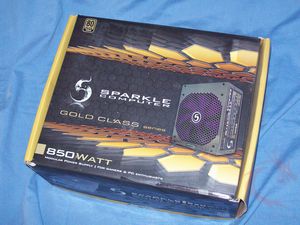

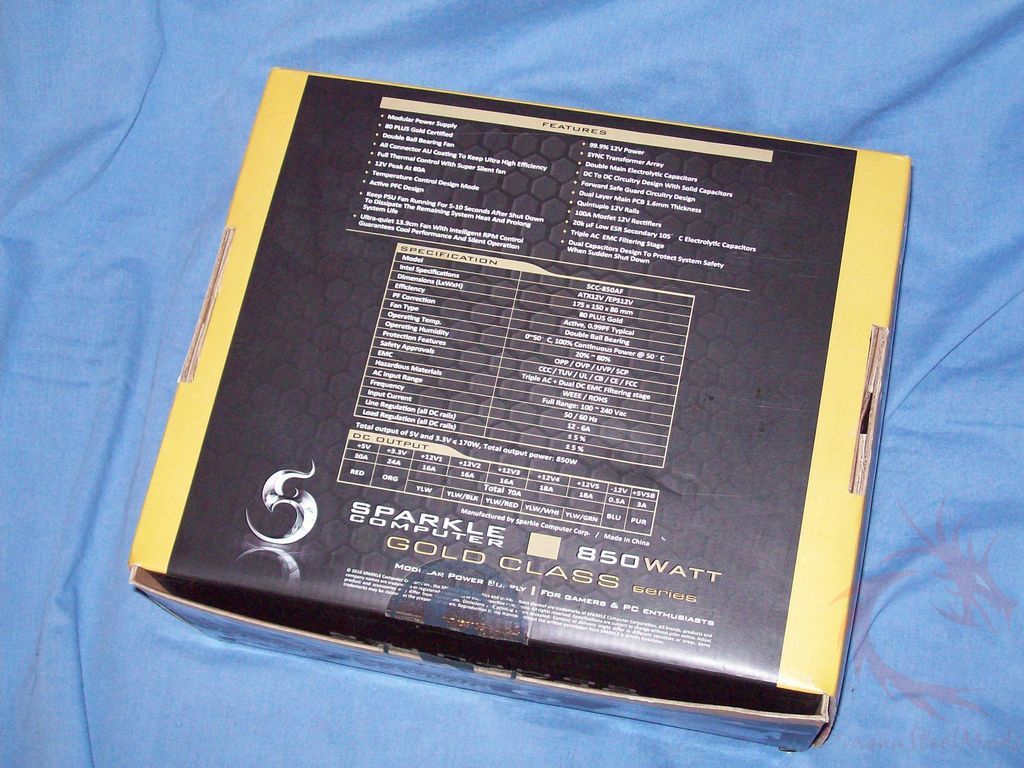

So the box for the 850 Watt Sparkle PSU looks exactly the same as the
one for the 750 watt as one might expect.
When you open the box you’ll find user manual, 80 plus certificate and a
membership card.

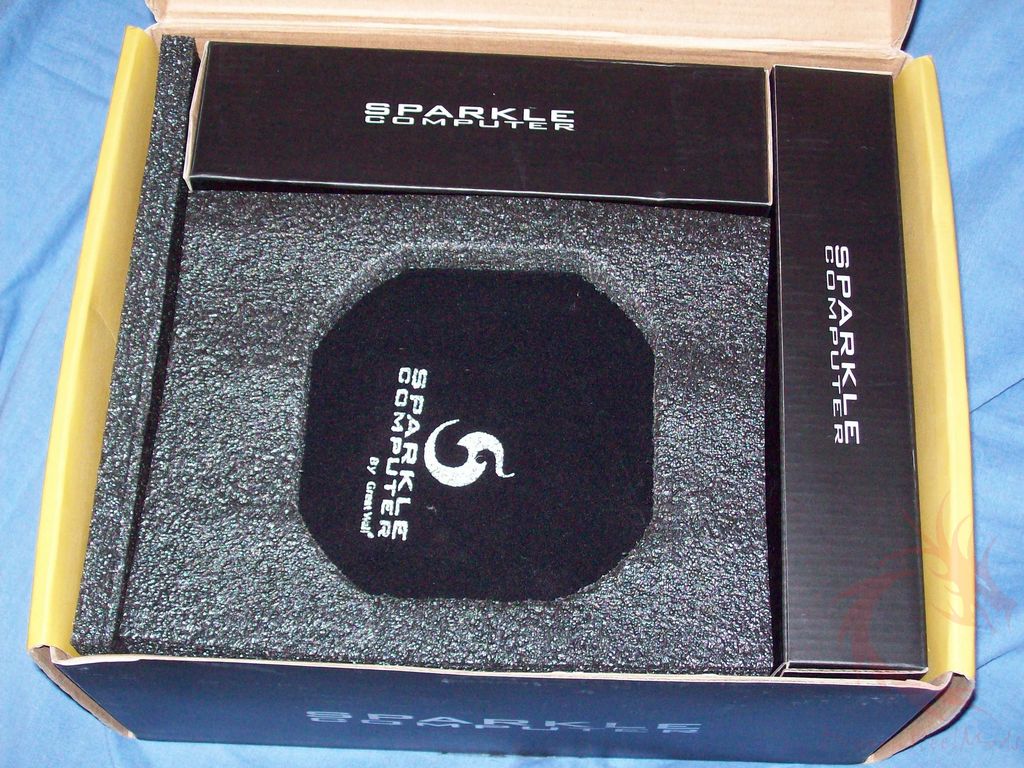

Under the documentation you’ll find everything all nice and snug.

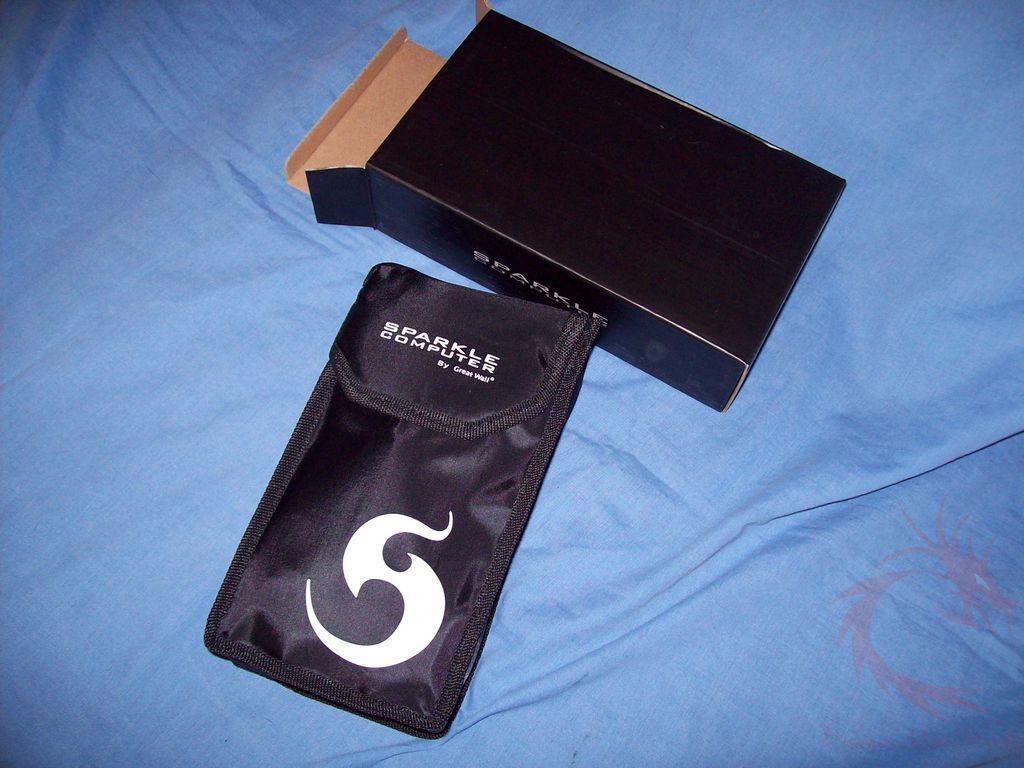

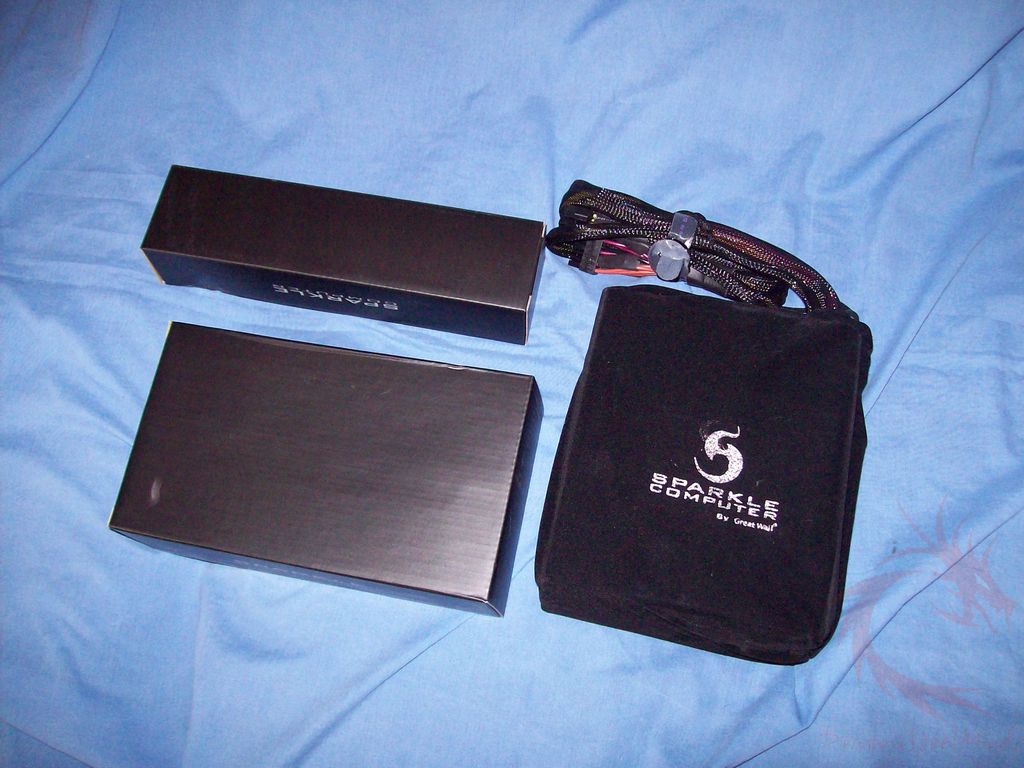

When you unpack it you’ll find the power supply wrapped in a very nice
cloth bag along with two boxes, one small and one big.

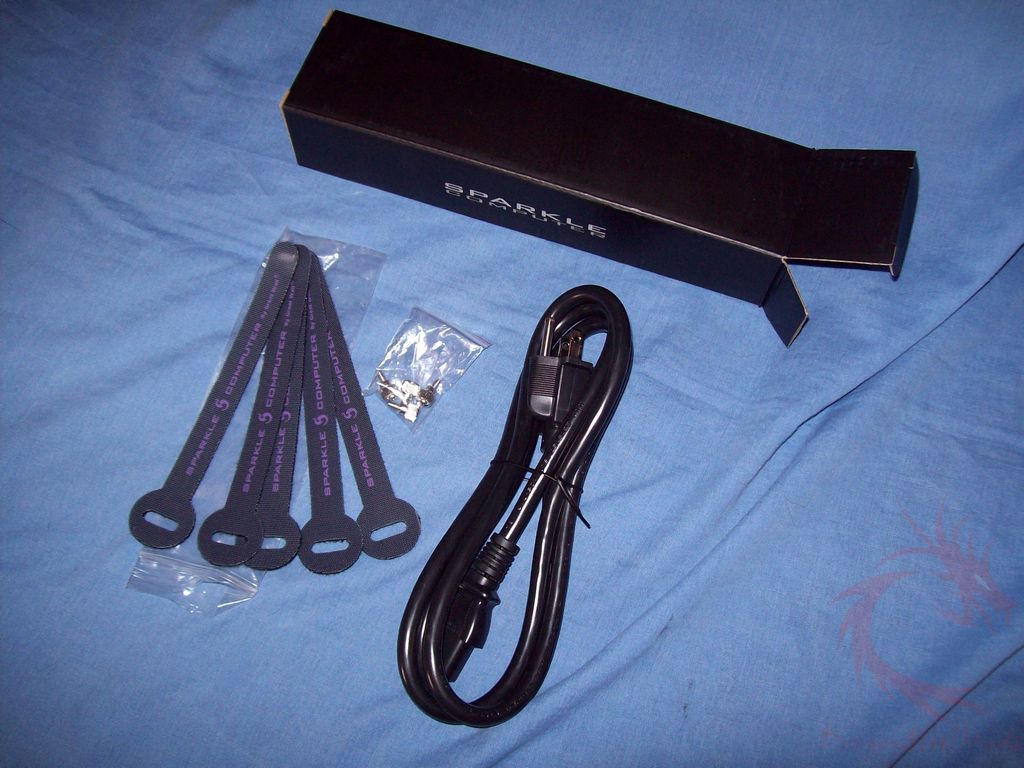

In the smaller box is a bag of screws, power cord and Velcro wrap ties.

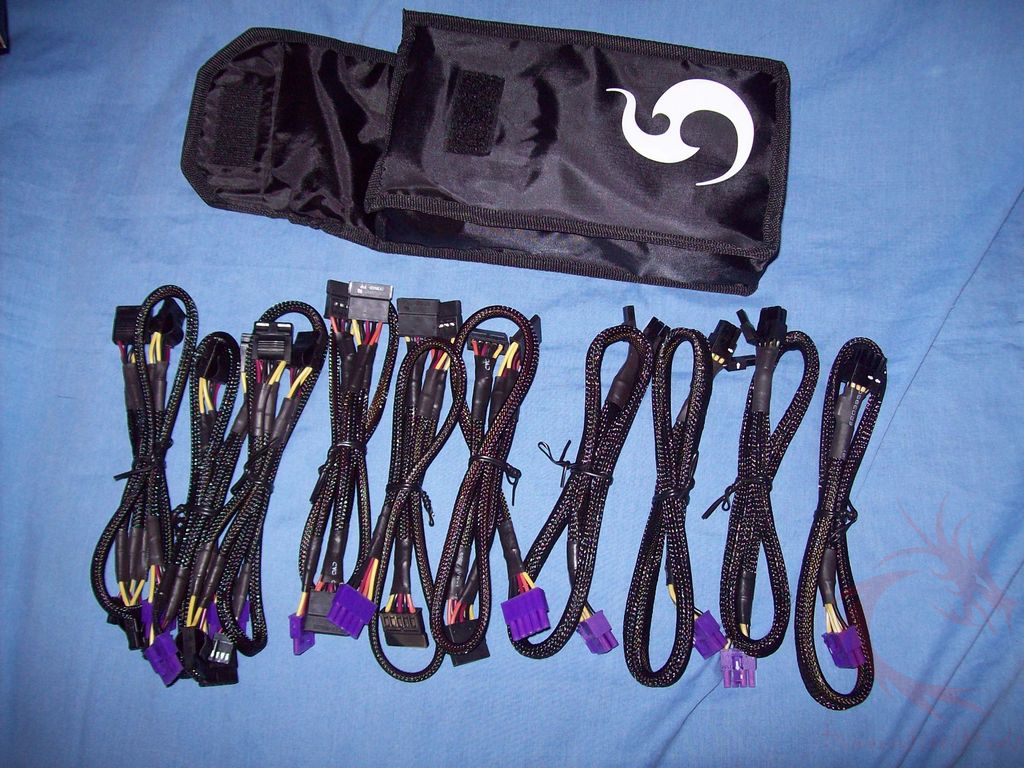

In the large box is a nylon bag with all of the cables in it.
The cables included
are:
6+2P PCI-E
Connector X 4
SATA Connector X 9
4P Molex Connector
X 9
4P FDD Connector X
3

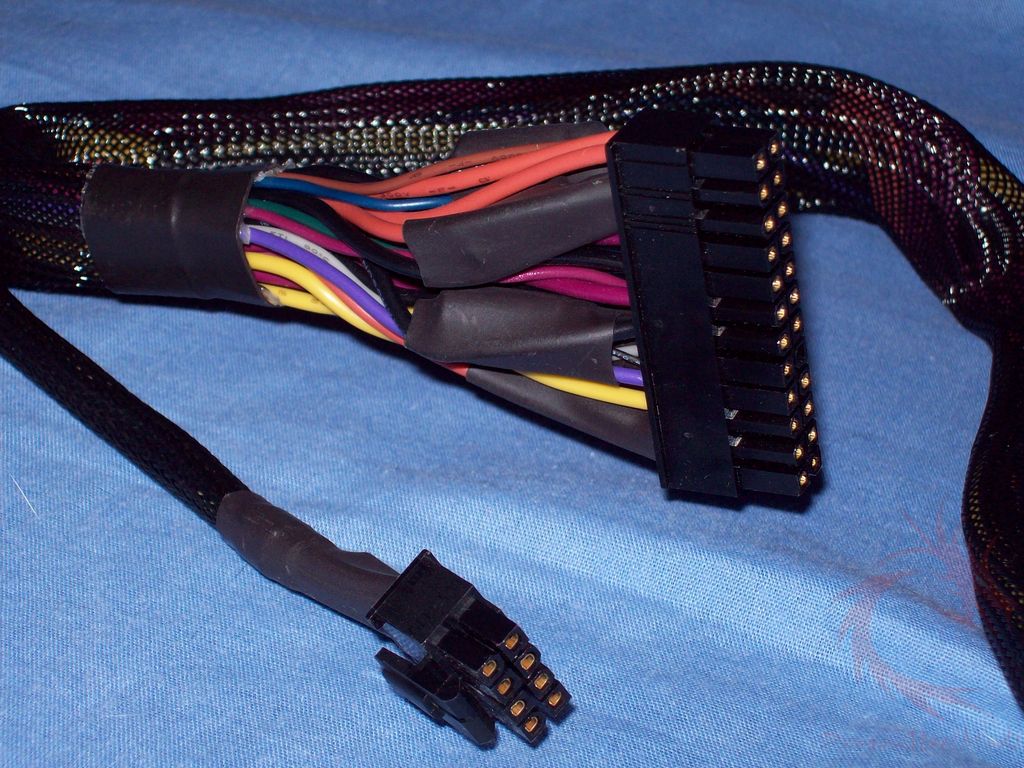

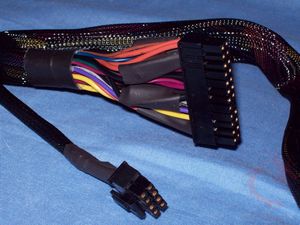

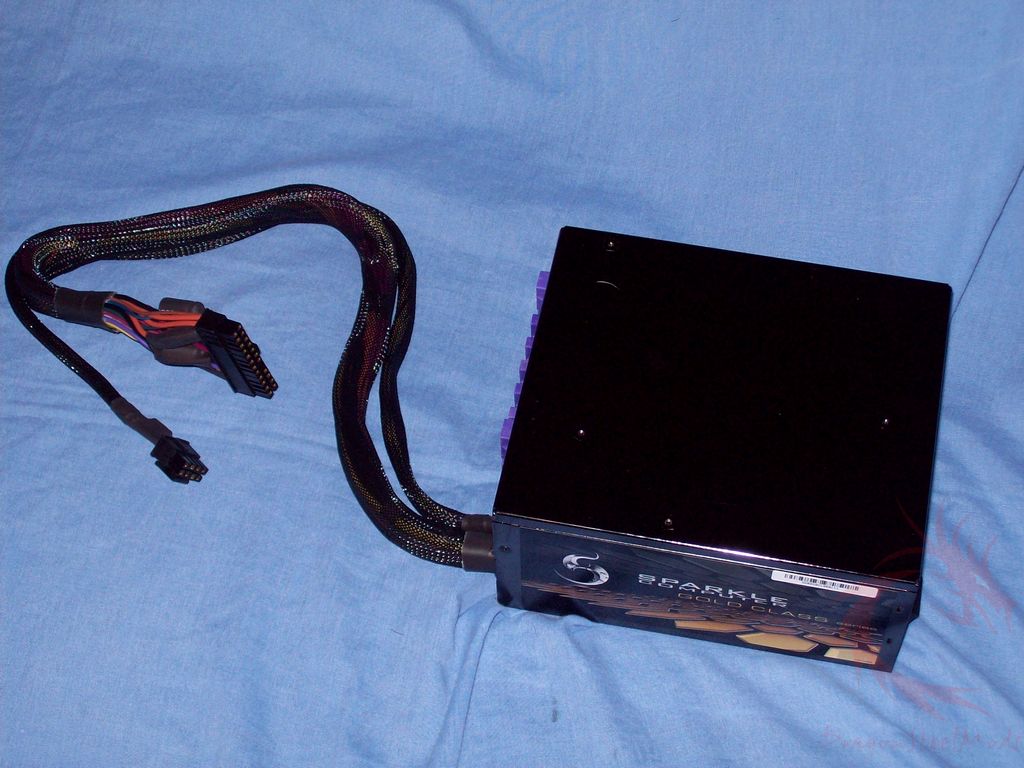

The power supply itself is a metallic dark bronze in color and isn’t
exactly modular as it has the main power cord and CPU power cable hard wired
into it.

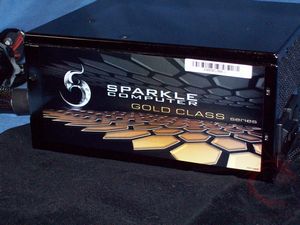

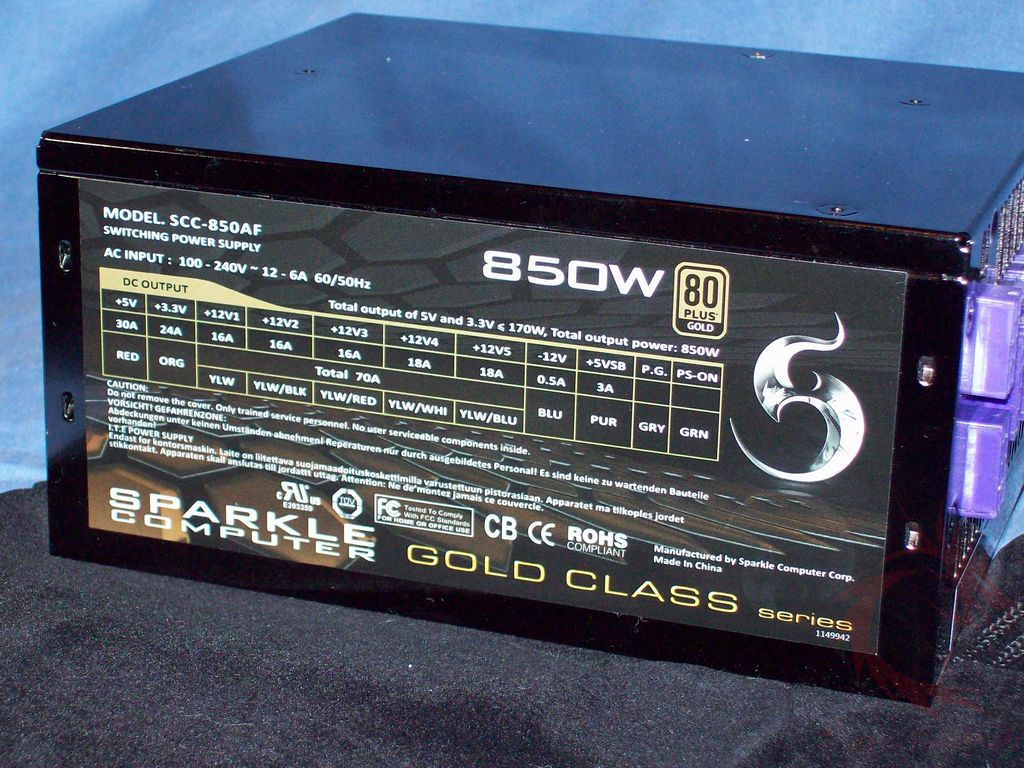

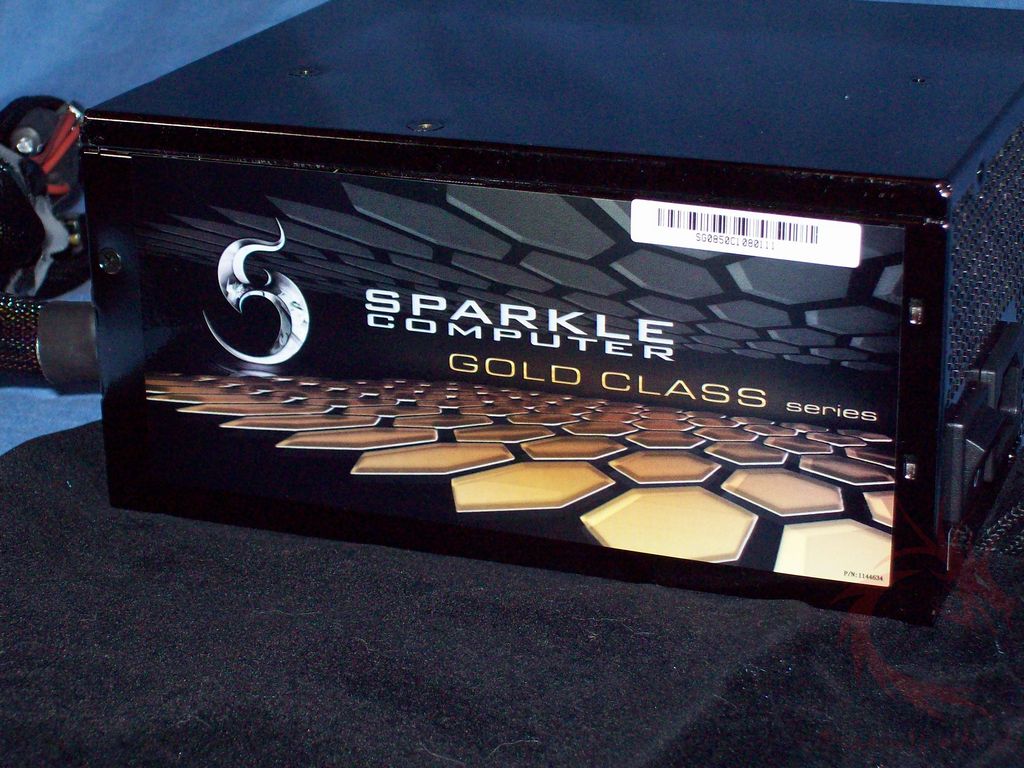

On one side of the PSU is the identification label and on the other side
is a Sparkle logo.

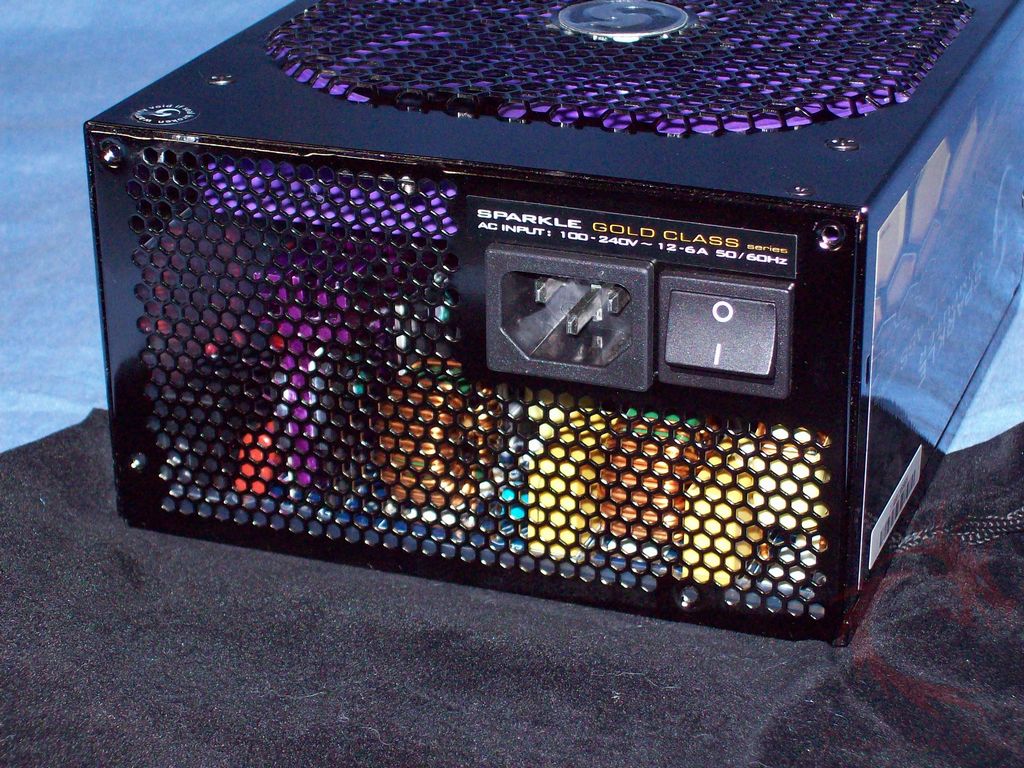

On the back of the PSU are the power connection and a nice large power
button.

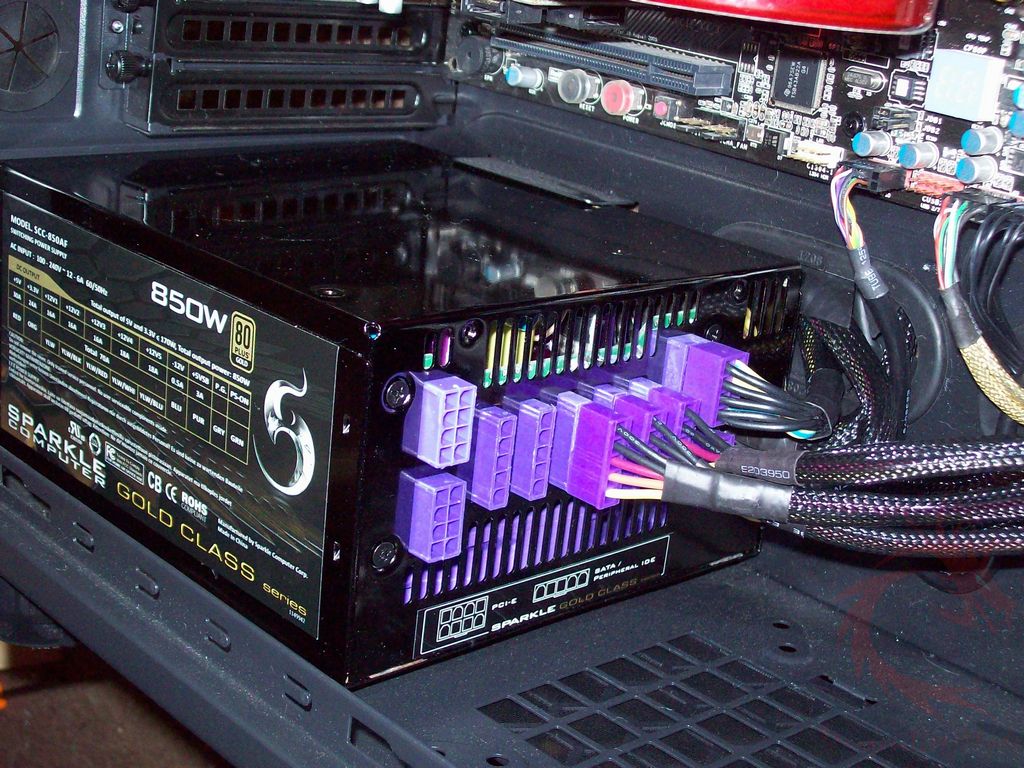

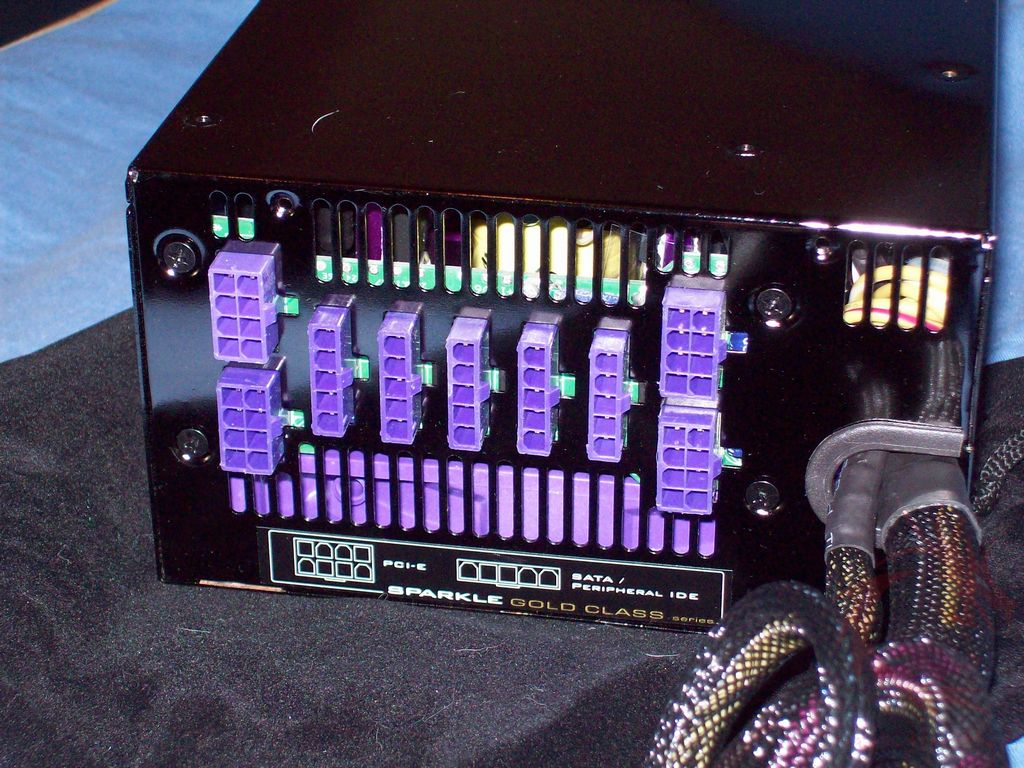

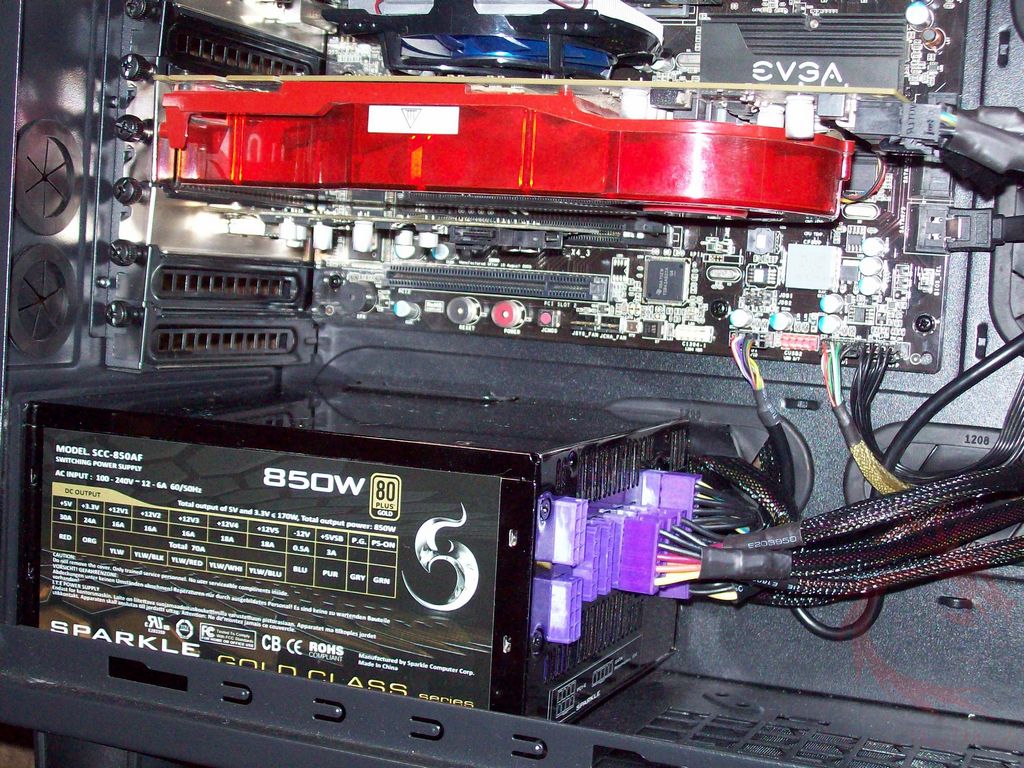

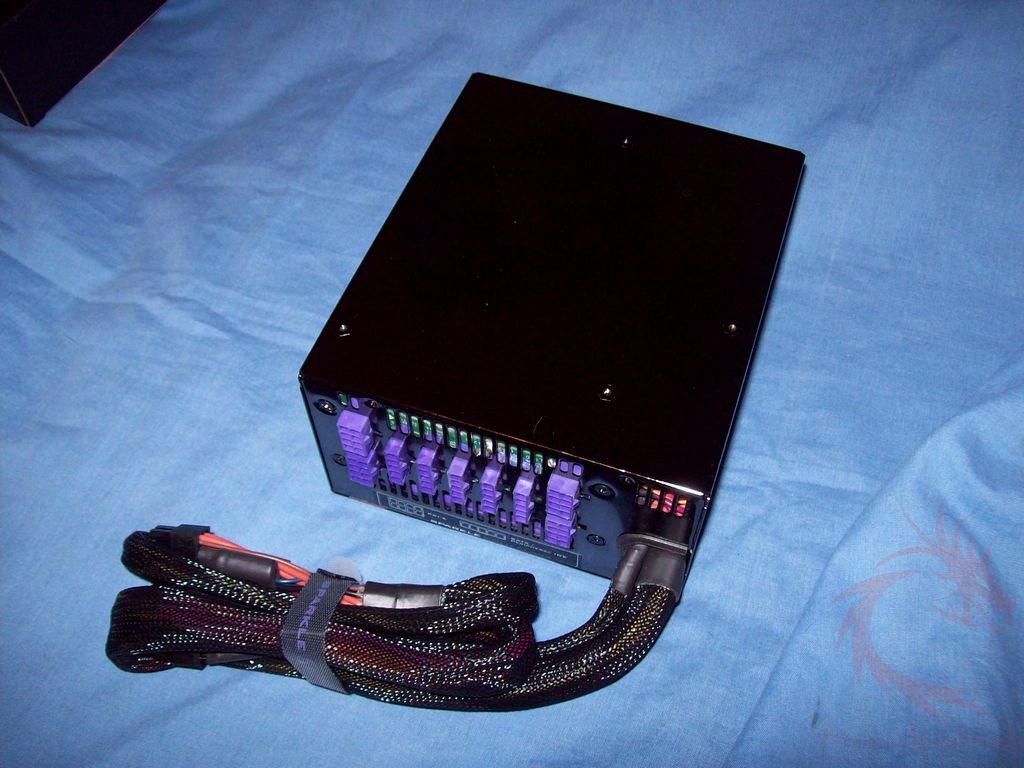

On the front is where you’ll find the connectors for the cables, yes
they’re purple for whatever reason.

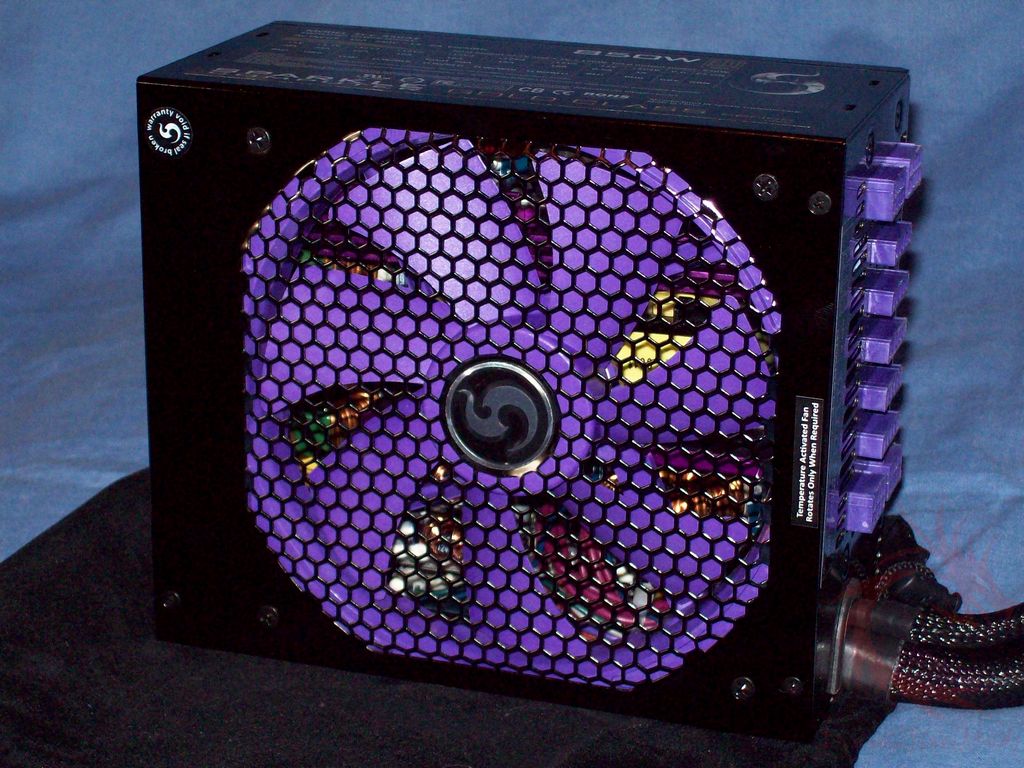

Then there’s a purple 13.9cm fan to keep everything nice and cool.
{mospagebreak title=Installation and Testing}
Installation, Testing and Comparison

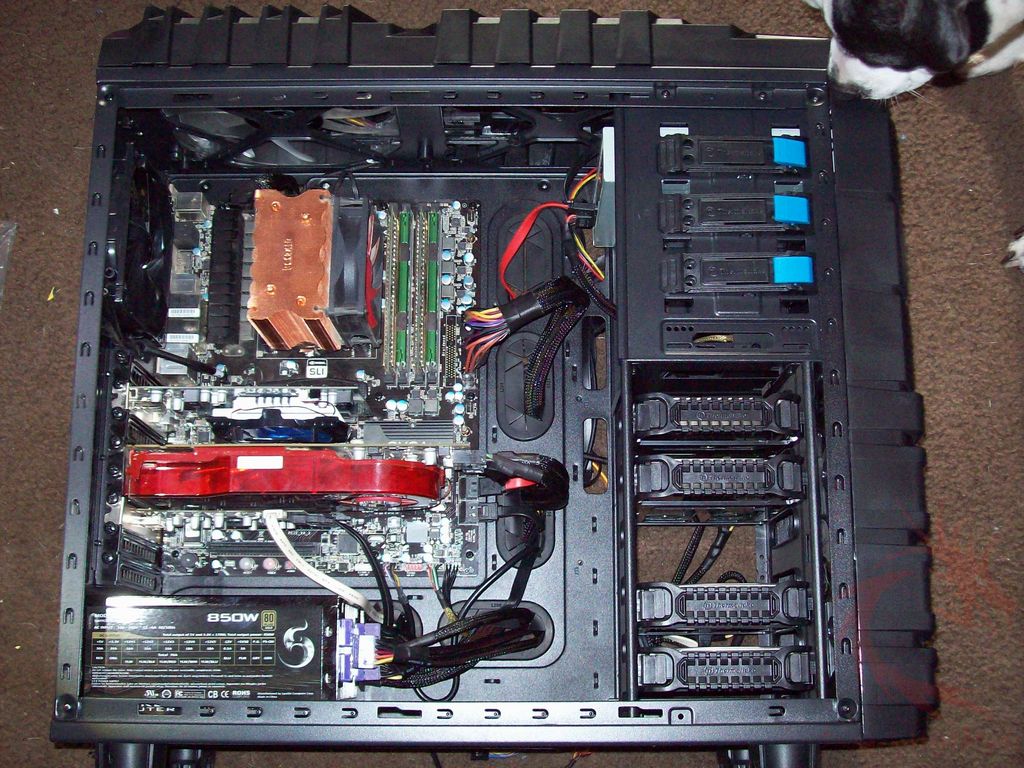

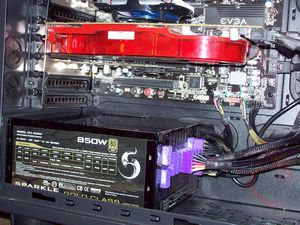

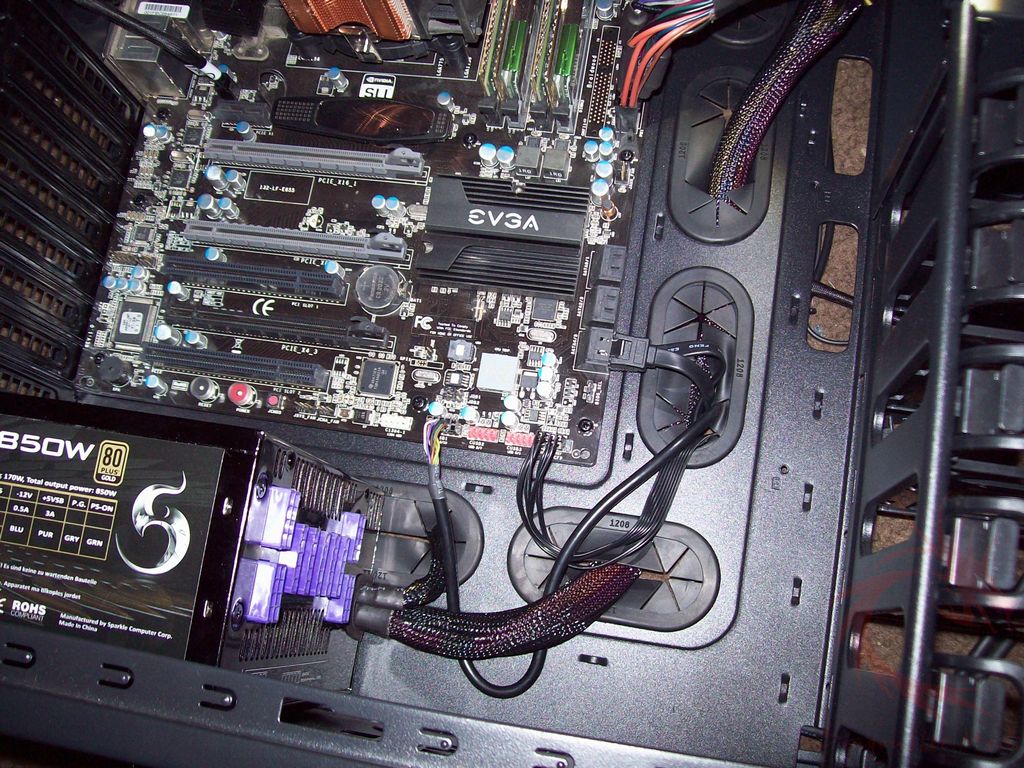

So here we are once again installing the power supply in my system.
My system is a Core i5 based one with four hard drives, an ATI 4890
video card and an ATI 6670.
Same as yesterday, for load and testing I used OCCT 4.0 which is a good
way to test your PSU and get some nice graphs. I’ve got three graphs for you
that show the voltages and the CPU load at the same time during testing.
+12 VDC ±5% (±0.60 V) +11.40 V to +12.60 V
+3.3 VDC ±5% (±0.165 V) +3.135 V to +3.465 V
+5 VDC ±5% (±0.25 V) +4.75 V to +5.25 V
Essentially you want your rails to be within certain tolerances, about
5% plus or minus or a 10% total fluctuation. For example the 12v rail should be
between +11.40 V to +12.60 V when working properly. If it’s not between those
voltages then there’s obviously a problem with the power supply.

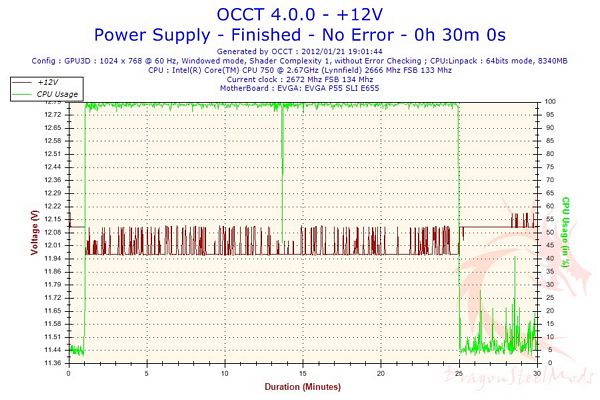

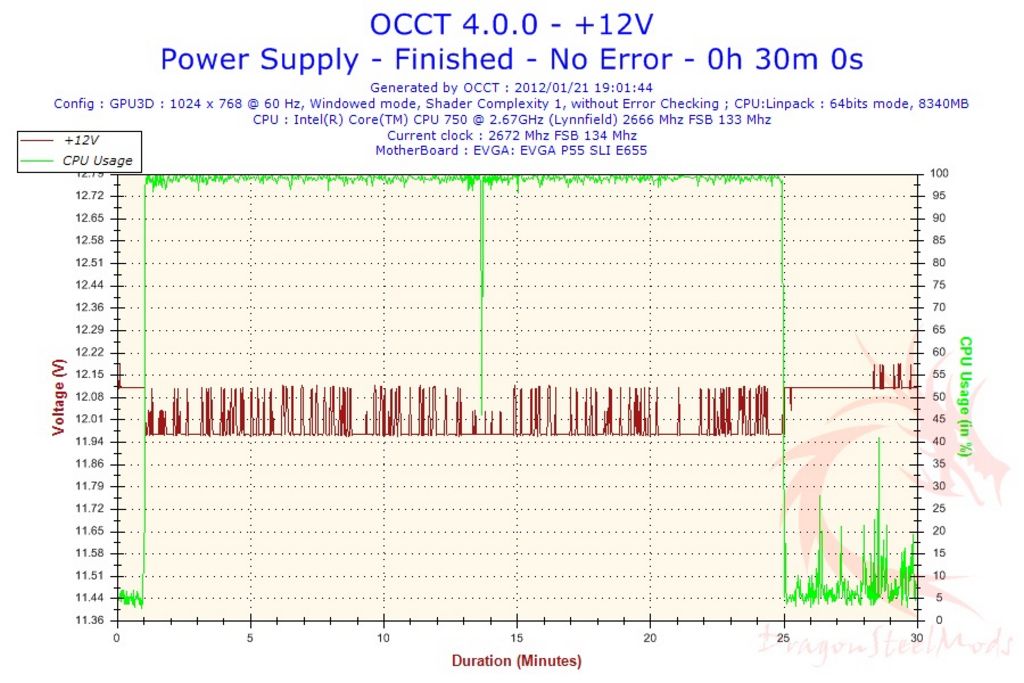

So let’s look at some graphs starting with the 12v line:
Just like the 750 Watt PSU, the 12v line jumps quite a bit, but it’s
well within tolerances.

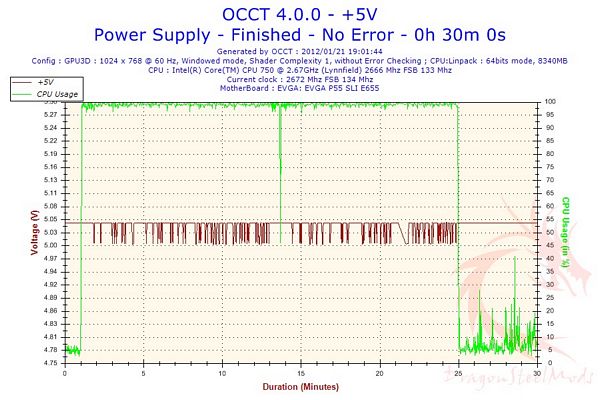

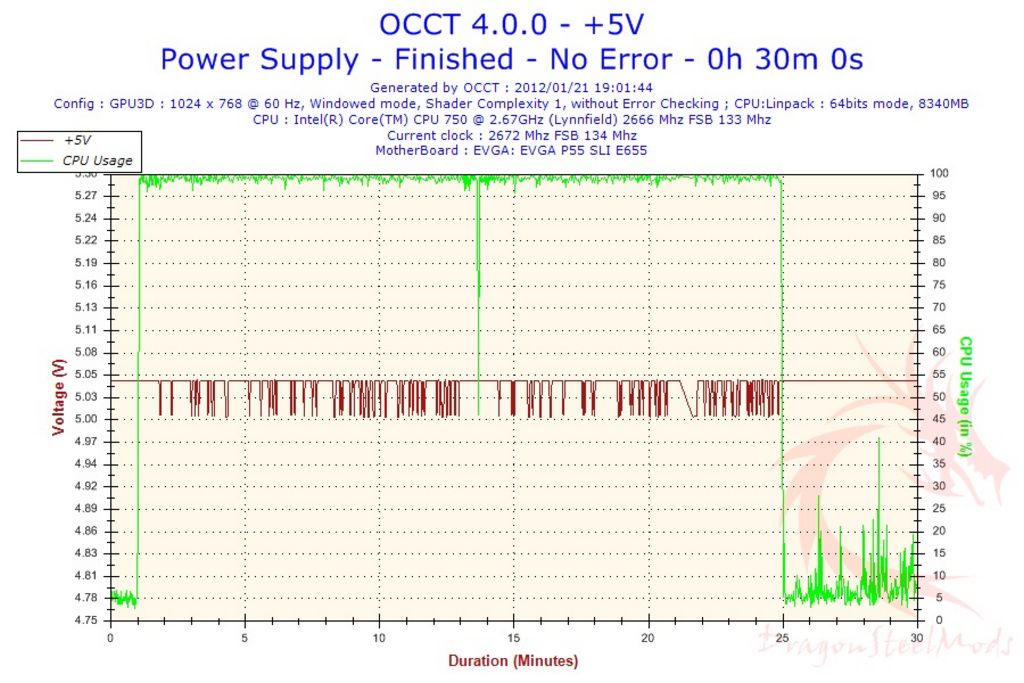

Here’s the 5v line:
What’s interesting here is that it never drops below the 5v mark even
under load.

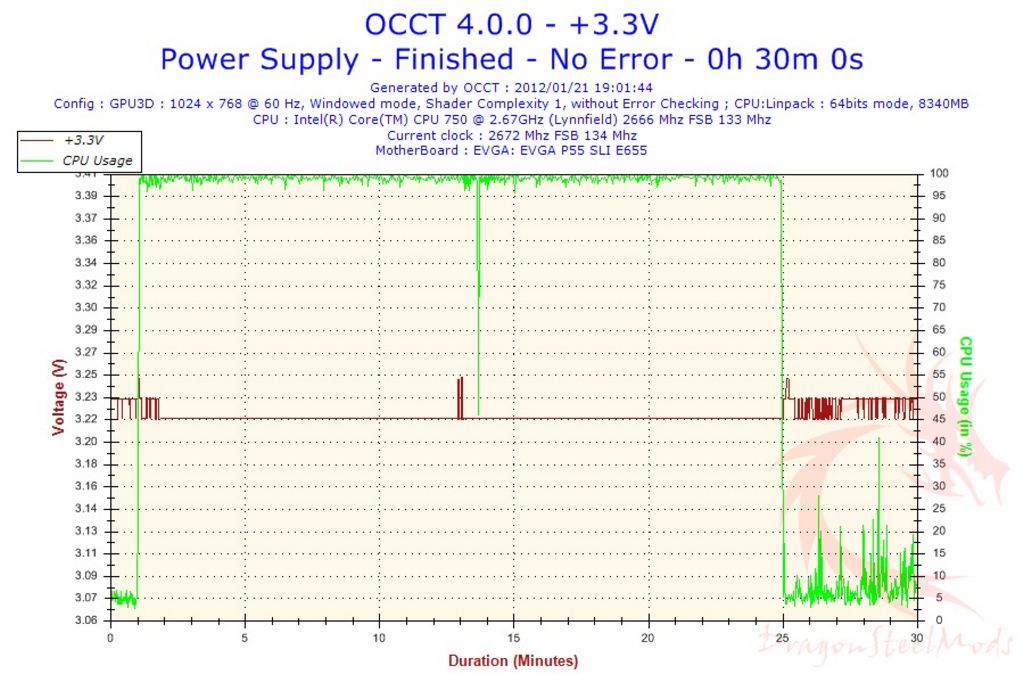

The last is the 3.3v rail:
This thing looks very stable doesn’t it? Just a few jumps, but you’ll
notice that it’s actually below the 3.3v mark even at rest. Not sure what to
make of that. It is well within tolerances though, so not much to worry about
really.
The fan is quiet even under load which is something I appreciate as I
like my system to be quiet.
Summary and Comments
The Sparkle 850 watt PSU is a good one in my opinion. The voltages stay
well within tolerances, and it’s nice and quiet. The cables are nice and long
and should reach most anywhere you need them. If you’re looking for a good
power supply for your system, then this one is a pretty good choice I think.
I’ve checked around for other reviews and most all seem to agree with
that assessment as well.
DragonSteelMods gives the Sparkle Gold Class Series 80 Plus ATX 850 Watt
Power Supply a 4.5 out of 5 score.
Pros:
+Lots of connections
+Quiet fan
+Long cables
+Includes Velcro cable ties
+Runs within tolerances
Cons:
-Lines can be jumpy
review# 722
Disclosure: This product was given to DragonSteelMods for review
by the company for review purposes only, and is not considered by us as payment
for the review; we do not, never have, and never will, accept payment from
companies to review their products.
